Schultz & Larsen Sound Moderators
Schultz & Larsen were quick to realise the potential of sound moderators. Silencing the report of the rifle is good for the environment, increases the precision of the rifle and reduces the risk of hearing damage.
Unusually, for a rifle maker at least, Schultz & Larsen have chosen to design and manufacture their own moderators. In doing so they have set the same standards for performance demanded of their rifles.
Each moderator is made of the highest quality materials and designed to withstand repeated firing with heavy calibres. Every baffle has a stainless steel cone in the centre to ensure longevity – hence the designation for this model range – ‘Schultz & Larsen Hardcore’.
The rear section of the over-barrel models is machined from solid bar and that alone is an impressive piece of engineering.
MICRO - RRP £165.00
The slimmest moderator in the Hardcore range. Weighing only 256g, adding only 148mm to the length of the rifle.
Muzzle Mounted | |
Length | 163mm |
Adds to barrel length | 148mm |
Diameter | 35mm |
Weight | 256 g |
Available in 6mm (.236” max). 7mm (.275” max). 8mm (.315mm max)
Maximum barrel diameter: 20mm at the muzzle.
Thread sizes | |
Metric | Imperial |
M14x1 | 1/2” x 20 UNF |
Ultradome - RRP £210.00
Although the Ultradome was designed to provide a slim and lightweight moderator for use on the Legacy, it's performance is excellent and the slim profile makes it the moderator of choice for many using larger calibres.
Over Barrel | |
Length | 225mm |
Adds to barrel length | 120mm |
Diameter | 38mm |
Weight | 322 g |
Available in 6mm (.236” max). 7mm (.275” max). 8mm (.315mm max)
Maximum barrel diameter: 18mm at 100mm from the muzzle
Thread sizes | |
Metric | Imperial |
M14x1 M15x1 |
1/2” x 20 UNF 1/2” x 28 UNEF |
Superdome - RRP £235.00
The Superdome performs well on all standard calibres and offers a good compromise between effective moderation and weight.
Over Barrel | Muzzle Mounted | |
Length | 225mm | 136mm |
Adds to barrel length | 120mm | 120mm |
Diameter | 44mm | 44mm |
Weight | 385 g | 280 g |
Available in 6mm (.236” max). 7mm (.275” max). 8mm (.315mm max)
Maximum barrel diameter: 20mm at 100mm from the muzzle
Thread sizes | |
Metric | Imperial |
M14x1 M15x1 |
1/2” x 20 UNF 1/2” x 28 UNEF 5/8” x 24 |
Superdome IR Improved - £260.00
The Superdome IR Improved has the same core design as the Superdome, but with better noise reduction. Only 5mm longer and 20 grams heavier, it performs extremely well on all standard calibres and is the recommended choice offering effective moderation with a lightweight construction.
Over Barrel | |
Length | 230mm |
Adds to barrel length | 120mm |
Diameter | 44mm |
Weight | 405 g |
Available in 8mm (.315mm max)
Maximum barrel diameter: 20mm at 100mm from the muzzle
Thread sizes | |
Metric | Imperial |
M14x1 |
Thunderdome Over Barrel - RRP £275.00
Thunderdome Muzzle Mounted - RRP £275.00
The Thunderdome is the moderator for those wanting maximum noise reduction and recoil reduction. This big moderator has the capacity to handle the most powerful loads and is especially recommended for taming the big magnums.
Over Barrel | Muzzle Mounted | |
Length | 225mm | 135mm |
Adds to barrel length | 120mm | 120mm |
Diameter | 54mm | 54mm |
Weight | 523 g | 387 g |
Available in 6mm (.243” max). 7mm (.275” max). 8mm (.315mm max). 9.5mm (.338 Win Mag Max).
Maximum barrel diameter: 22mm at 100mm from the muzzle
Thread sizes | |
Metric | Imperial |
M14x1 M15x1 M17x1 M18x1 |
1/2” x 20 UNF 1/2” x 28 UNEF 5/8” x 24 |
An additional baffle module is available as an add on to further increase the noise reduction. The module adds 54mm to the length and around 150g to the weight. If you wish to add or remove modules you will need the pair of C-spanners made by Schultz & Larsen for this purpose.
Ultra Venom - RRP £320.00
The latest in the Venom Series, the Ultra Venom is an over barrel moderator offering stunning sound reduction for the size and weight. Featuring a the same efficient internal design throughout the series, but a more compact version with a tough scratch resistant external finish.
Over Barrel | |
Length | 255mm |
Adds to barrel length | 150mm |
Diameter | 38mm |
Weight | 341 g |
Available in 6.5mm (.256” max). 7mm (.275” max). 8mm (.315mm max). New for the UK is the .30" cal.
Thread sizes | |
Metric | Imperial |
M14x1 M15x1 |
1/2” x 20 UNF 1/2” x 28 UNEF |
Venom - RRP £360.00
Lighter than both the Superdome and Thunderdome, the Venom is available in both muzzle mounted and over barrel, offering excellent sound reduction in a compact package. Featuring a the Venom's efficient internal design and a tough scratch resistant external finish.
Muzzle Mounted | Over Barrel | |
Length | 165mm | 255mm |
Adds to barrel length | 150mm | 150mm |
Diameter | 50mm | 50mm |
Weight | 365 g | 470 g |
Available in 6.5mm (.256” max). 7mm (.275” max). 8mm (.315mm max). New for the UK is the .30" cal.
Thread sizes | |
Metric | Imperial |
M14x1 M15x1 M17x1 M18x1 |
1/2” x 20 UNF 1/2” x 28 UNEF 5/8” x 24 |
Maintenance
The moderators require minimal cleaning to prevent rusting. The recommended cleaning method is to run a cleaning rod through the moderator periodically. In theory the carbon left behind from usage actually reduces the noise as it slows the gases flowing through the moderator.
Rimfire Moderators
Even though a rimfire rifle is not offered in the Schultz & Larsen range, the company do make a rimfire specific moderator. As you would expect from a company dedicated to doing everything in the best way, they offer a dedicated .17 moderator for the very popular .17HMR.
Rimfire moderators are muzzle mounted.
.17 Rimfire Moderator - RRP £125.00
Length | 141mm |
Diameter | 30mm |
Weight | 95 g |
Decibel Reduction | 27 db |
Thread | 1/2" x 20 UNF |
.22 LR Mini - RRP £70.00
Length | 111mm (8 Baffles) |
Diameter | 30mm |
Weight | 75 g |
Decibel Reduction | 22 db |
Thread | 1/2" x 20 UNF |

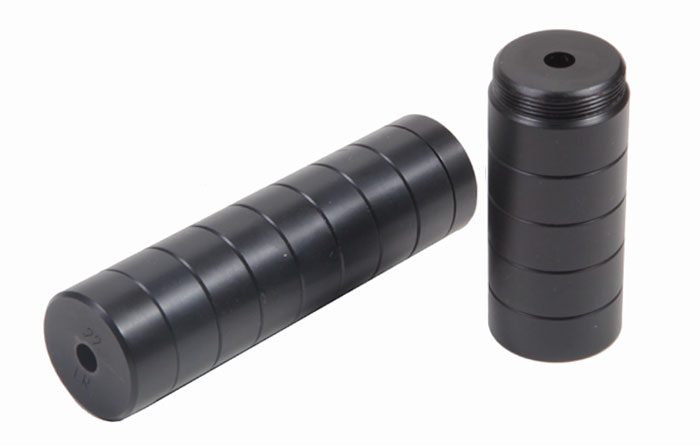

The .22 LR Mini is slimline and lightweight. It features 8 Baffles, but can be added to, transforming it into the .22 LR Mini XL (featured below).
.22 LR Mini XL - RRP £100.00
Length | 131mm (10 Baffles) |
Diameter | 30mm |
Weight | 95 g |
Decibel Reduction | 27 db |
Thread | 1/2" x 20 UNF |
Both Mini and Mini XL are muzzle mounted moderators aimed for Rimfire rifles. The Mini is aimed at Subsonic ammunition and the Mini XL is aimed at Supersonic ammunition. The additional length added with the expansion module is 20mm.
Sound Moderators
Robust and Hardcore, the Schultz & Larsen Sound moderators will not disappoint. Designed by a company that knows and understands accuracy. These moderators are the logical first choice for any rifle.
